Gaggenau
- Optimal protection for sensitive glasses through low-temperature drying with zeolite, sophisticated basket design and intelligent water softening
- 6 programs with aqua sensor and 3 options, including Power for cleaning and drying in 57 minutes and Intensive for particularly thorough cleaning in the lower basket
- Flexible basket system with smooth-running pull-outs on all levels
- Bright interior lighting
- Push-to-open function for perfect integration into handle-free furniture fronts
- li>
further details
- Optimal protection for sensitive glasses through low-temperature drying with zeolite, well thought-out basket design and intelligent water softening
- 6 programs with aqua sensor and 3 options, including Power for cleaning and drying in 57 minutes and Intensive for particularly thorough cleaning in the lower basket
- Flexible basket system with smooth-running pull-outs on all levels
- Bright interior lighting
- Push-to-open function for perfect integration with handle-free furniture fronts
- Remaining time projection on the kitchen floor
- Very quiet: 43 dB
Operation strong>
- TFT display with display of the remaining running or end time, refilling of salt and rinse aid, control display for water inlet.
- Operation using sensor buttons.
- Flexible shortening of the running time Programs, even during the rinsing process.
- Drying assistant for optional door opening after the end of the program (only available when the Home Connect function is active).
- Personalization function for saving individual program combinations.
< li>Info button with operating instructions.- Time preselection up to 24 hours.
- Optical and acoustic end signal.
- Remaining time projection.
Technical features
- Bright interior lighting.
- Glass protection with zeolite.
- Aqua sensor.
- Load sensor.
- Cleaner detection.
- Regeneration electronics.
- Heat exchanger.
- Instantaneous water heater.
- 3-fold filter system.
< li>Servo lock.- Aquastop.
Selected digital services (Home Connect)
- Program assistant.
- Temporary noise reduction.
- Drying assistant for optional door opening after the end of the program.
- Downloadable programs.
- Home network integration for digital services (Home Connect) wirelessly via WiFi.
- The use of the Home Connect function depends on the Home Connect services, which are not available in every country. Further information can be found at home-connect.com.
Programs
- 6 washing programs:
- Auto 35 °C - 45 °C. Auto 45°C - 65°C. Auto 65°C - 75°C. Eco 50°C. Fast 45 °C (35 min.). Personalization function (factory setting: pre-rinse).
- 3 options:
- Intensive. Power. Half load.
- Machine care.
Equipment
- Flexible basket system with smooth-running extensions on all levels.
- Upper basket :
- Excessive excerpt. Optional cleaning zone, by activating additional spray nozzles. 3-stage Rackmatic, height adjustable up to 5 cm. 6 folding spines. 4 folding shelves for optimal glass protection.

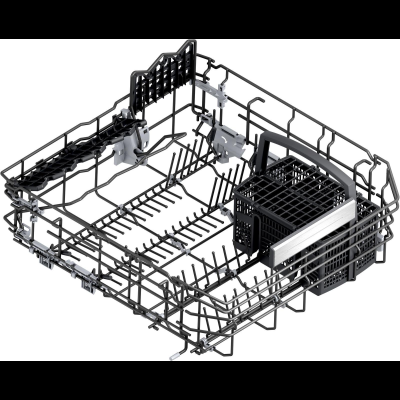

- Lower basket:
- 8 folding spikes. 2 folding shelves for optimal glass protection. Divided glass holder.
- Cutlery basket.
- Maximum plate sizes (upper/lower basket):
- 27/25, 24.5/27.5 or 22/ 31 cm.
- Capacity for 12 place settings.
- Loading with a maximum of 23 wine glasses possible.
Consumption data
- Energy efficiency class B on a scale of efficiency classes from A to G.
- From 9.5 l of water.
- From 0.626 kWh.
- Sound power 43 dB (re 1 pW ).
Planning information
- Height-adjustable feet.
- Device base setback 100 mm (see drawing).
- Um In order to be able to display the remaining time projection, there must be at least a base recess (40 mm + furniture front thickness).
- The maximum base height must be reduced by 30 mm in order to enable the optimal display of the remaining time projection.
< li>Back foot adjustable at the front.- Door weight up to 8.5 kg.
- The size of the door front depends on the base height of the respective kitchen furniture.
- Installation and operation also included Furniture handle possible. The push-to-open function remains active.
Connection data
- Total connection value 2.0 kW - 2.4 kW.
- Connection cable, pluggable.
- Water connection with screw connection 3/4".
- Connection to hot or cold water possible.
- Power standby/network 2.0 W.
- Time auto standby/network 2 min.
- Duration of not switched off state 0 min.
- Please note the instructions in the instructions for use if you want to switch off the WiFi function.
Product safety information
Manufacturer information:
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
Bayern
München, Deutschland, 81739
www.bsh-group.com
https://www.bsh-group.com
-
Product series: Series 200
-
Design: Built-in li>
-
Is this device a built-in device?: Yes
-
Type of installation: Fully integrable
-
Elevated Istallation: Yes
-
Control: Electronic
-
Controls: Display, touch buttons
-
Removable worktop: No
-
Decorable: Not possible
-
Basic color of the product: Not applicable
-
Inner container material: Stainless steel
-
Instantaneous water heater: Yes
-
Connection load : 2400 W
-
Fuse: 10
-
Voltage: 220-240 V
-
Minimum voltage: 220 V
-
Maximum voltage: 240 V
-
Frequency: 50; 60 TPU00040
-
Minimum frequency: 50
-
Maximum frequency: 60
- Length of connection cable b>: 175.0 cm
-
Plug type: Schuko/Gardy.with earthing
-
Length of inlet hose: 165 cm li>
-
Length of drain hose: 190 cm
-
Adjustable base: Horizontal and vertical
-
Base adjustable : 4 cm
-
Height-adjustable feet: Yes - all from the front
-
Height adjustment feet maximum: 6 cm< /li>
-
Device height: 81.5 cm
-
Device width: 59.8 cm
-
Device depth : 55 cm
-
Depth product with door open (90°): 115 cm
-
Height of packaged device : 87 cm
-
Width of packaged device: 66 cm
-
Depth of packaged product: 67 cm
- Niche height minimum: 81.5 cm
-
Niche height maximum: 87.5 cm
-
Niche width minimum: 60 cm
-
Maximum niche width: 60.8 cm
-
Niche depth: 55 cm
- Net weight: 45.1 kg
-
Gross weight: 47.0 kg
-
Location of the control : Above
-
Additional door functions: Door opening by finger pressure
-
Comparison program: Eco
-
Performance index of cleaning (EU 2017/1369): 1,121
-
Program duration (EU 2017/1369): 4:55
-
Performance index of drying (EU 2017/1369): 1,061
-
Energy efficiency index (EU 2017/1369): 38
-
Energy consumption of the eco -Program per 100 operating cycles (EU 2017/1369): 63 kWh/100 operating cycles
-
Energy consumption of the eco program per operating cycle in kWh (EU 2017/1369) : 0.626
-
Airborne noise emissions (EU 2017/1369): 43 dB(A) re 1 pW
-
Power consumption with time preselection (EU 2017/1369 ): 4.00 W
-
Power consumption in networked standby mode (EU 2017/1369): 2.00 W
-
Power consumption in standby -Operation (EU 2017/1369): 0.50 W
-
QR code (EU 2017/1369): HTTPS://EPREL.EC.EUROPA.EU /QR/753094
-
Highest number of place settings (EU 2017/1369): 12
-
Water consumption in liters in the eco program per operating cycle ( EU 2017/1369): 9.5
-
Energy-intelligent device, can optimize consumption behavior (2017/1369/EU): No
-
Wireless communication possible: Yes, built into the device
-
Network broadband technology: Not applicable
-
SIM card slot available: No
-
Communication technology used: WiFi
-
Type of interface for control: LAN
- < b>Remote upgrade option: No
-
Remote update option for maintenance: Yes
- Voice control option< /b>: Yes, with optional accessories
-
Maximum adjustable rinsing temperature: 75 °C
-
Type of drying: Heat exchanger+drying assistant, Zeolite
-
Start time delay options: Continuous
-
Stop delay or start delay option: Start
-
Start time delay max .: 24 h
-
Single basket rinsing: Not possible
-
Program sequence display: Acoustic program end signal, water inlet
-
Description of water safety system: 3-way water protection 24h
-
Remaining time display: No
-
Softening system : Yes
-
Salt deficiency display: Yes
-
Max. possible water hardness: [50°DH] °fH, °dH, °Clarke or mmol/l
-
Rinse aid shortage indicator: Yes
-
Minimum adjustable washing temperature: 35 °C
-
Programs: Auto 45-65°C, Auto Plus, Auto Gentle, Eco 50°C, Favorite, Quick 45 °C
-
Max. Water inlet temperature: 60 °C
-
Other operating options: Half load, Home Connect function, IntensiveZone, Machine Care
-
Automatic program b>: Yes
-
Safety devices: 3-way water protection 24h, child lock (open by pressing the door twice)
-
Interior lighting : Yes
-
Upper basket adjustable: Rackmatic 3-stage
-
Bath additive material: Upper basket, lower basket
-
Software update: Yes
-
Included accessories: 1 x baking tray spray head, 1 x stainless steel cladding strips
-
Selectable Languages in the display: de/en/fr/nl/it/el/es/pt/sv/no/fi/da/tr/ru/pl/cs/hu/hr/sl/am/fc/ mex/sk/uk/ro/zh/zh-tw
-
Half load available: Yes
-
Maximum door panel weight : 8.50 kg
-
COMBINED_NOMENCLATURE_CODE: 84221100
