Design:
- Inclined-Esse
- Wall mounting
- Glass panel: printed in black
- Choice of exhaust air or recirculation mode
- Chimneyless operation possible with recirculated air
- The Clean Air Plus recirculation set (accessory) or the Longlife recirculation set (accessory) is required for recirculation mode.
Most important features:
- Energy-saving operation with iQdrive motor technology
- Lighting: 2 pcs, led, 3 w, with adjustable color temperature
- softLight: the lighting switches on and off gently.
- Dimming function: the brightness of the lighting can be adjusted.
- Color temperature: 3500 K
- Illuminance: 422 lux
- Boost position: intermediate position of the glass filter cover for better extraction of particularly strong cooking odors and steam.
- Extractor hood on the front and underside
- 3 metal grease filters
Comfort functions:
- Air quality sensor bme688: Automatic sensor-based power control for best results
- T54-SE5D
- 3 power levels + 2 intensive levels
- Automatic reset from intensive to normal level after 6 min.
- Saturation indicator for grease and odor filter
- Automatic after-run: 10 minutes
Digital functions:
- Home Connect: Operating, checking and setting your hood via smartphone or tablet (only in countries where the Home Connect service is available)
- The cookConnect system automatically activates the cooker hood when cooking, thanks to the WiFi connection between the stove hood and a suitable hob.
- Fully automatic extractor hood
- Voice control possible via common voice assistants
- Performance profiles: Choose between Standard, Power or Quiet in the Home Connect app to increase the extraction power or reduce the fan noise.
- Favorites button: yes - direct access to favorite functions via a configurable button (available with connected Home Connect account)
- Smart Home Trigger via the favorites button (available with connected Home Connect account): Open the smart universe of your range hood from (partner service required).
- LED lighting with adjustable light temperature: Allows you to adjust the light temperature to your personal needs via the Home Connect app
- Interval function: available via the Home Connect app
- The Home Connect functionality can be extended as required by integrating numerous applications from external cooperation partners (partnering)
- Updateable device (available with a connected Home Connect account): Always keep the device up to date with the latest software.
Convenient cleaning:
- Extremely wide opening angle for easy access to filters and easy cleaning.
- The surfaces and materials are smooth and easy to clean.
- Inner frame, easy to clean
- Metal grease filter, dishwasher-safe
Exhaust air performance:
- In accordance with en 61591 and en/IEC 60704-2-13, your appliance can achieve the following values in exhaust air mode:
- Performance level 1: Fan performance:228 m3/h; noise level: 35 dB(a) re1pW
- Performance level 2: Fan performance:325 m3/h; noise value: 43 dB(a) re1pW
- Power level 3: Fan output:441 m3/h; noise value: 51 dB(a) re1pW
- Intensive level 1: Fan power:753 m3/h; noise level: 65 dB(a) re1pW
- Intensive level 2: Fan output:1007 m3/h; noise value: 70 dB (a) re1pW
- Energy efficiency class: a+ (on an energy efficiency class scale from a+++ to D)
- Average energy consumption: 39.1 kWh/year*
- Fan efficiency class: A*
- Lighting efficiency class: A*
- Grease filter efficiency class: C*
Air recirculation performance:
- In accordance with en 61591 and en/IEC 60704-2-13, your appliance can achieve the following values in recirculation mode with the Clean Air plus recirculation set, for installation with chimney:
- Performance level 1: Fan performance:211 m3/h; noise value: 42 dB(a) re1pW
- Performance level 2: Fan output:315 m3/h; noise value: 51 dB(a) re1pW
- Power level 3: Fan output:435 m3/h; noise value: 59 dB(a) re1pW
- Intensive level 1: Fan power:752 m3/h; noise level: 72 dB(a) re1pW
- Intensive stage 2: Fan output: 964 m3/h; noise value: 78 dB(a) re1pW
- In accordance with en 61591 and en/IEC 60704-2-13, your appliance can achieve the following values in recirculation mode with the Clean Air plus recirculation set for chimneyless installation:
- Performance level 1: Fan performance:214 m3/h; noise value: 42 dB(a) re1pW
- Performance level 2: Fan output:312 m3/h; noise value: 51 dB(a) re1pW
- Power level 3: Fan power:437 m3/h; noise value: 60 dB(a) re1pW
- Intensive level 1: Fan output:751 m3/h; noise value: 74 dB(a) re1pW
- Intensive level 2: Fan output:944 m3/h; noise value: 80 dB (a) re1pW
Technical data and sustainability:
- Consumption data:
- Total connected load: 250 W
- Voltage: 220 - 240 V
- Sustainability:
- Made in Germany: manufactured in a CO2-neutral production facility
- Environmentally friendly packaging
- The most efficient fan technology on the market
- Available odor filter as a regenerable long-life filter with a 10-year service life
- Air quality sensor bme688: sensor-based power control for best results with minimum energy consumption.
Information on planning and installation:
- Unit dimensions exhaust air (HxWxD): 855-1098 x 890 x 447 mm
- Recirculation unit dimensions (HxWxD): 892-1185 x 890 x 447 mm
- Recirculating air installation dimensions, chimneyless (HxWxD): 471 mm x 890 mm x 447 mm
- Simple and weight-reduced installation thanks to the new Easy-Installation-System
- Exhaust air connection ø 150 mm
- Connection cable length: 1.3 m with plug
- Supplied with backflow flap
| Energy efficiency class: |
G
|
| Product type: |

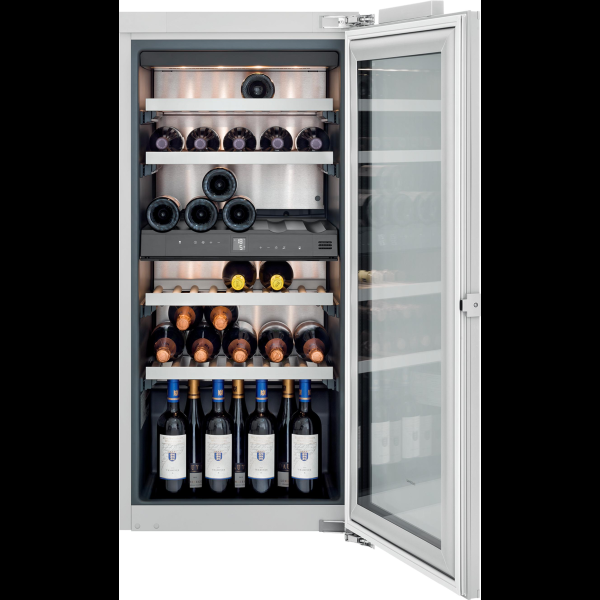

Wine storage cabinet
|
| Installation type: |
Integrable
|
| Device width: |
60cm
|
| Controls: |
Temperature display for cooling; door open warning signal
|
| Item weight: |
66,00 kg
|
| fire: |
Gaggenau |
| Model name: |
RW222263 |
| Scale energy efficiency class: |
A+++ to D |
| Energieeffizienzklasse: |
G |
| Brand according to ElektroG (EAR): |
Gaggenau |
| Device type according to ElektroG: |
Large appliances that can be used in private households. |
| WEEE reg. no. EN: |
57986696 |
Product safety information
Manufacturer information:
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
Bayern
München, Deutschland, 81739
www.bsh-group.com
https://www.bsh-group.com
Drop "Shop: DE: Produktseite: LoadBee" could not be rendered:
Syntax error in template "string:{assign var="drop" value=kkDropperHelper..." on line 5 "{/ if}" - Unexpected " ", expected one of: "id, name"
-
Product seriesiQ700
-
Color applianceblack
-
Basic color of the product: Not applicable
-
Housing color: Black
-
Chimney material: Black
-
Specify material of housing: Glass, lacquered
-
Type of construction: Wall mounting
-
Control system: Electronic
-
Type of constructionbuilt-in
-
Type of installationwall mounting
-
Operating elements: led, TouchControl
-
Decorable: Not applicable
-
Fan position: Motor in housing
-
Type of air duct: Convertible
-
Connected load: 250 W
-
Fuse protection: 10
-
Voltage: 220-240 V
-
Minimum voltage: 220 V
-
Maximum voltage: 240 V
-
Frequency: 50; 60 TPU00040
-
Minimum frequency: 50
-
Maximum frequency: 60
-
Connection cable length: 130.0 cm
-
Plug type: Schuko-/Gardy.w.earthing
-
Height of the product; without chimney45 cm
-
Appliance height45 cm
-
Appliance width89 cm
-
Appliance depth44.7 cm
-
Packed appliance height77.5 cm
-
Width packed appliance72 cm
-
Depth of packed product122 cm
-
Net weight26,1 kg
-
Gross weight37.1 kg
-
Chimney exhaust air max. height: 66,3 cm
-
Chimney exhaust air height min.: 42 cm
-
Chimney height recirculation max.75 cm
-
Chimney recirculation height min.45.7 cm
-
Application of the EU Energy Consumption Directiveyes
-
Energy efficiency class (2010/30/EU): a+
-
Average annual energy consumption: 39.1 kWh/year
-
Liquid dynamic efficiency (2010/30/EU): 39.3
-
Lighting efficiency (2010/30/EC)58.6 lux/Watt
-
Grease filter efficiency (2010/30/EU): 81.4 %
-
Max. Air volume: 441 m³/h
-
Minimum air flow: 228 m³/h
-
Amplified airflow (2010/30/EU): 1007.0 m³/h
-
Noise level at max. speed (2010/30/EC)51 dB
-
Noise level at min. speed (2010/30/EC)35 dB
-
Volume amplified (2010/30/EC)70 dB
-
Sound power dB: 51 dB(a) re 1 pW
-
Noise level with fast cooking position (booster): 70 dB(a) re 1 pW
-
Energy intelligent appliance, can optimize consumption (2017/1369/EU)no
-
Wireless communication possible: Yes, built into the appliance
-
Network broadband technologynot applicable
-
SIM card slot availableno
-
Communication technology usedbluetooth, Wifi
-
Type of interface for controllAN
-
Possibility of remote upgradeyes
-
Remote update option for maintenanceyes
-
Voice control optionyes, with optional accessories
-
Manual controlstouchControl
-
Remote controlno
-
Total fan power: 230 W
-
Max. Fan capacity - exhaust air mode: 441 m³/h
-
Fan output at intensive level - extract air mode: 1007 m³/h
-
Max. Fan capacity - recirculation mode437 m³/h
-
Fan capacity at intensive level - recirculation mode944 m³/h
-
Lighting efficiency (2010/30/EC)infinitely variable
-
Total light intensity: 422 lux
-
Material grease filter: Stainless steel washable
-
Exhaust air spigot diameter15 cm
-
Type of grease filter: Cassette
-
Backdraft flapyes
-
Odor filterno
-
Number of speed settings: 3-speed + 2 intensive
-
COMBINED_NOMenCLATURE_CODE: 84146000
