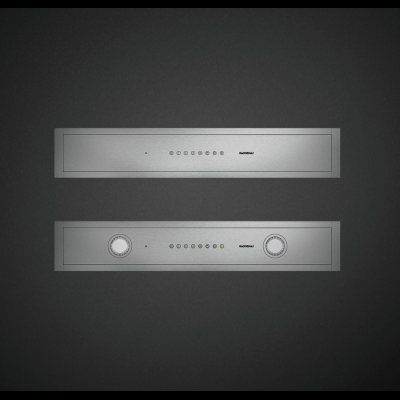

- Control element of modular ceiling ventilation with light
- Individual integration of light elements in the ceiling ventilation configuration
- Control element of modular ceiling ventilation with light
- Individual integration of light elements in the ceiling ventilation configuration
- Performance values depend on the blower module.
- 7-button infrared remote control, emergency control buttons on the control module.
- 3 electronically controlled power levels and 1 intensive level.
- Interval ventilation, 6 min.
- Run-on function, 6 min.
- Grease filter saturation indicator.
- Connection of the respective units via a network cable.
- When installing ventilation with exhaust air operation and a chimney-bound fireplace, the power supply to the ventilation units must be provided with a suitable safety circuit.
- Attachment to the filter module.
- Total connected load 355 - 1160 W.
- Connection cable 1.75 m, pluggable.
Product type: | Accesories |
Device width: | 80cm |
Item weight: | 2,00 kg |
- Product series400 series
- Unit width: 80 cm
- Unit depth14 cm
- Packed unit height26 cm
- Width packed unit90 cm
- Depth packed product25 cm
- Net weight: 2,8 kg
- Gross weight: 6,0 kg
- Accessories for: Extractor hood
