Manufacturers:
Gaggenau

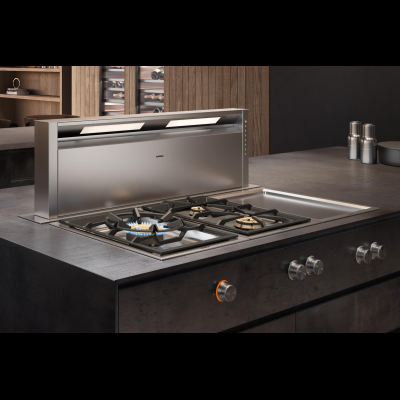

- Extendable table ventilation, can be completely retracted into the worktop when not in use
- Can be perfectly combined with all Vario cooking appliances from the 400 series
- Dimmable, neutral white surface LED light for optimal Illumination of the cooking area
- Precisely processed 3 mm thick stainless steel
- Choice of surface-mounted installation with visible edge or discreetly integrated flush with the surface
further details
- Extendable table ventilation, can be completely retracted into the worktop when not in use
- Can be perfectly combined with all Vario cooking appliances from the 400 series
- Dimmable, neutral white surface LED light for optimal Illumination of the cooking area
- Precisely processed 3 mm thick stainless steel
- Choice of surface-mounted installation with a visible edge or discreetly integrated flush with the surface
- Motorless, can be combined with Gaggenau BLDC fan modules
- Motorless, can be combined with Gaggenau BLDC fan modules
- li>
Performance- Performance values depend on the fan module.
Equipment
- 3 electronic controlled power levels and 1 intensive level.
- Interval ventilation, 6 minutes.
- After-run function, 6 minutes.
- Grease filter saturation display.
< li>The scope of delivery includes 2 large metal grease filters, easy to remove and dishwasher safe.- Grease drip trays, easy to remove and dishwasher safe.
- Neutral white surface LED light (3600 K), continuously dimmable.
- Lamp power 4 x 10 W.
- Illuminance 400 lx.
- Flexible connection options for the fan module: below, on the front and back .
- With all connection options, there is space for drawers in front of the table ventilation.
Consumption data- The table ventilation is only available in the EU countries Recommended in recirculation mode, consumption data is not required in this mode.
Planning information
- Can be combined with all Vario Series 400 and 400 Series cooking appliances.
- Maximum hob combination width: 120 cm.
- To ensure sufficient vapor capture, two fan modules are recommended.
- Due to the EU regulation EU 66/2014, in the EU Countries only recirculation mode is recommended.
- Installation accessories must be ordered separately depending on the type of installation.
- Recirculation air mode is not recommended in combination with Vario electric grill.
- For optimal For performance in recirculation mode, an outflow area of at least 800 cm² is recommended (min. 400 cm² per fan module).
- Operating Vario cooking appliances is only possible without the appliance cover.
- Max. Output of hobs 18 kW.
- The table ventilation must have a separate cutout in the worktop.
- The load-bearing capacity and stability, especially with thin worktops, must be ensured by suitable substructures. Take into account the weight of the device including additional load.
- The remaining web in the worktop (at least 50 mm) between the cutouts must be reinforced with a beam. The furniture strut AA 409 401/431 is recommended for this.
- Additional information for flush installation:
- Installation is suitable in worktops made of stone, synthetic material or solid wood. Heat resistance and waterproof sealing of the cut edges must be taken into account. For other materials, please consult the worktop manufacturer regarding their use.
- Depending on the type of installation, ovens can be combined with table ventilation.
- When installing a ventilation system with exhaust air operation and a chimney-connected one Fireplace, the power supply of the ventilation devices must be provided with a suitable safety circuit.
- The control unit must be easily accessible and installed on the cabinet in a waterproof manner.
Connection data< ul>
Total connected load 65 W.
Connection cable 1.7 m with plug.
Network cable 1.2 m.
-
Product series: Series 400
-
Color of device: Stainless steel
-
Basic color of the product: Not applicable
-
Colour of casing: Stainless steel
-
Specify material of casing: Stainless steel
- < b>Design: Downdraft/table fan
-
Control: Electronic
-
Design: Built-in
< li>Type of installation: Built-in-
Controls: Short-stroke buttons, illuminated buttons
-
Decorative: Not applicable
-
Location of fan: External motor
-
Type of air flow: Convertible
-
Connection value : 65 W
-
Fuse: 10
-
Voltage: 230 V
- < b>Maximum voltage: 230 V
-
Frequency: 50; 60 TPU00040
-
Minimum frequency: 50
-
Maximum frequency: 60
- Length of connection cable b>: 170.0 cm
-
Plug type: GB-St.with right flat plug, Schuko/Gardy.with earthing
-
Height of product; without chimney: 54 cm
-
Device width: 118.4 cm
-
Device depth: 14 cm
-
Height of packaged device: 38 cm
-
Width of packaged device: 64 cm
-
Depth of packaged product : 130 cm
-
Minimum niche width: 114 cm
-
Maximum niche width: 114 cm
< li>Niche depth: 12.5 cm-
Net weight: 40.7 kg
-
Gross weight : 47.0 kg
-
Application of the EU Energy Consumption Directive: Yes
-
Energy efficiency class (2010/30/EU): Not applicable
-
Max. Air volume: 1020 m³/h
-
Minimum air flow: 540 m³/h
- Air flow increased (2010/30/EU)< /b>: 1140.0 m³/h
-
Consumption in standby mode (2010/30/EC): 0.46 W
-
Energy intelligent device, can optimize consumption behavior (2017/1369/EU): No
-
Wireless communication possible: No
- Network broadband technology b>: Not applicable
-
SIM card slot available: No
-
Type of interface for control: No
-
Ability to remotely upgrade: No
-
Ability to remotely update for maintenance: No
-
Possibility of voice control: No
-
Manual controls: Short-stroke buttons
-
Automatic controls: Without
< li>Remote Control: No-
Max. Fan power - exhaust mode: 1020 m³/h
-
Fan power at intensive level - exhaust mode: 1140 m³/h
-
Max. Fan power - recirculation mode: 580 m³/h
-
Lighting efficiency (2010/30/EC): Continuously variable
-
Total power lamps : 20 W
-
Total light intensity: 400 lux
-
Frease filter material: washable stainless steel
-
Type of grease filter: Cassette
-
Backflow flap: No
-
Odour filter: No
-
Type of lights used: LED
-
PALLET_HEIGHT_PALLET: 0.0
-
COMBINED_NOMENCLATURE_CODE: 84146000
