- Solid stainless steel frame
- Flex function for combining the rectangular cooking surfaces
- Free placement of cookware within the interconnected cooktops
- Highly efficient ventilation system integrated in the cooktop
- Fully automatic functions of the ventilation system
further details
- Solid stainless steel frame
- Flex function for combining the rectangular cooking surfaces
- Free placement of cookware within the interconnected cooktops
- Highly efficient ventilation system integrated in the cooktop
- Fully automatic functions of the ventilation system
- Large metal grease filter, easy to remove, dishwasher safe
- Energy-saving and low-noise fan
- exhaust air or recirculation mode
- Integrated activated charcoal filter for easy removal from above in recirculation mode
- Twist-pad operation with removable magnetic knob
- application-related control of all functions via two-color display
Cooking zones
- 2 flex induction cooktops 23x19 cm (2200 w, with booster 3700 w), interconnected 23x38 cm (3300 w, with booster 3700 w).
- 2 Flex induction cooktops 23x19 cm (2200 w, with booster 3700 w), interconnected 23x38 cm (3300 w, with booster 3700 W).
Performance ventilation system
- Power and noise, level 3/Intensive:
- Air performance according to en 61591.
- Sound power level according to en 60704-3.
- Odor reduction with recirculation according to en 61591.
- exhaust air:
- 532 / 636 m³/h.
- 70 / 74 dB (a) re 1 pW.
- Recirculation:
- 497 / 627 m³/h.
- 67 / 72 dB (a) re 1 pW.
Operation

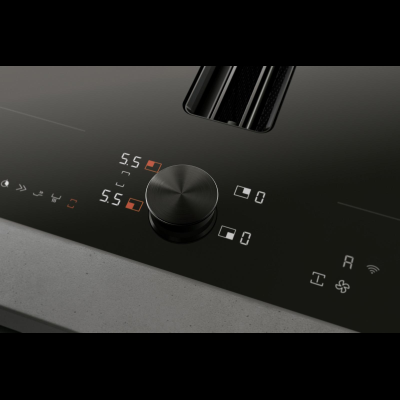

- Twist-pad operation with removable magnetic toggle.
- User-friendly operation with two-color display (white / orange).
- Marking of cooking zones and cooking surfaces.
- Electronic control in 17 power levels.
- Regulation of the ventilation system with 3 electronically controlled power levels and 1 intensive level.
equipment
- Flex function for rectangular cooking surfaces.
- automatic pot detection when the cooktop is switched on.
- Professional cooking function.
- Cooking sensor function (when using the cooking sensor ca 060 300).
- Roast sensor function.
- Booster function pots.
- Booster function for pans.
- Keep warm function.
- automatic sensor-controlled power adjustment of the ventilation system.
- automatic switching on of the ventilation system when a cooking zone is used.
- Interval ventilation, 6 min.
- automatic sensor-controlled or manual run-on function.
- Grease filter and activated carbon filter saturation indicator.
- Grease filter unit removable, dishwasher safe.
- High quality black cover for ventilation system made of zinc die-cast, dishwasher safe.
- Fan technology with high-efficiency brushless DC motor (BLDC).
- Flow-optimized interior for efficient airflow.
- Stopwatch.
- Automatic cooking time up to 99 minutes.
- Short-time alarm.
- Memory function.
- Options menu.
- Energy management.
- Home network integration for digital services (Home Connect) wirelessly via WiFi.
- The use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.
Consumption data
- Energy efficiency class a on a scale of efficiency classes from a+++ to D.
- Average energy consumption 56.9 kWh/year.
- Fan efficiency class a.
- Lighting efficiency class -.
- Grease filter efficiency class B.
- Noise min. 61 dB / max. 70 dB normal level.
Safety
- Main switch.
- Operation indicator.
- Pot detection.
- 2-stage residual heat indicator.
- Child safety lock.
- Safety shut-off.
- Two-stage overflow protection removable, dishwasher safe.
- Removable overflow container, capacity 0.9 liters, dishwasher safe.
Planning information
- Base unit width: min. 60 cm.
- worktop depth: min. 60 cm for unguided recirculation, min. 65 cm for guided recirculation/exhaust.
- Immersion depth 223 mm.
- For the unguided recirculation set (ca 082 010), provide a vertical opening of min. 25 mm behind the back wall of the furniture. For optimum performance, 50 mm is recommended.
- a flat duct pipe (nw 150) can be connected directly to the connection piece on the back of the unit.
- In exhaust mode, a backflow damper with a maximum opening pressure of 65 Pa should be installed.
- For optimum performance in recirculation mode, an outflow area of min. 400 cm² is recommended.
- Only suitable for iron-magnetic cookware. For optimal temperature distribution, cookware with sandwich bottom is recommended.
- For recirculation installations on non-insulated exterior walls, guided recirculation installation is recommended.
- Pressure stable blower allows piping up to 8m with 3x90° bends while maintaining adequate performance.
- Unit is to be mounted from below.
- Unit weight: approx. 29 kg.
- The unit must be freely accessible from below.
- In case of installation of a ventilation with exhaust air operation and a chimney-bound fireplace, the power supply of the ventilation units must be provided with a suitable safety circuit.
- The load-bearing capacity and stability, especially with thin worktops, must be ensured by suitable substructures. Take into account the weight of the appliance including additional load.
connection data
- Total connected load 7.4 kW.
- connection cable 1.5 m without plug.
- Power standby/display off 0.5 W.
- Power standby/network 2.0 W.
- Please follow the instructions in the user manual if you want to switch off the WiFi function.
| Item information |
Value |
| Energy efficiency class: |
A |
| Color: |
Black#1 |
| Product type: |
Hob with integrated extractor |
| Device width: |
80cm |
| Controls: |
IlluminatedMagnetic togglesIn frontCylinder toggle |
| Item weight: |
28,00 kg
|
| brand: |
Gaggenau |
| Modellbezeichnung: |
CV282111 |
| Marke laut ElektroG (EAR): |
Gaggenau |
| Geräteart laut ElektroG: |
Großgeräte, die in privaten Haushalten genutzt werden können. |
| Skala Energieeffizienzklasse: |
A+++ bis D |
| WEEE-Reg.-Nr. DE: |
57986696 |
| Geräuschpegel (dB): |
70 |
| Energieverbrauch pro Jahr (kw/h): |
56.9 |
| energy_efficiency_class: |
A |
| eu_product_data_sheet: |
https://media3.bsh-group.com/Documents/eudatasheet/de-DE/CV282111.pdf |
| EU product data sheet: |
https://media3.bsh-group.com/Documents/eudatasheet/de-DE/CV282111.pdf |
| EU energy label: |
https://media3.bsh-group.com/Documents/3000x3000/energylabel/de-DE/CV282111.jpg |
Product safety information
Manufacturer information:
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
Bayern
München, Deutschland, 81739
www.bsh-group.com
https://www.bsh-group.com
Drop "Shop: DE: Produktseite: LoadBee" could not be rendered:
Syntax error in template "string:{assign var="drop" value=kkDropperHelper..." on line 5 "{/ if}" - Unexpected " ", expected one of: "id, name"
-
Product series200 series
-
Design: Built-in
-
Controlelectronic
-
Controls: illuminated, magnetic knobs, front, cylinder knobs
-
Control position: Front
-
Main surface material: glass ceramic
-
Color deviceblack
-
Basic color of the productblack
-
Frame designframe
-
Frame colorstainless steel
-
Voltage: 220-240 V
-
Frequency: 50; 60 TPU00040
-
approval certificates: australia Standards, ce, EaC-Eurasian, G-Mark, Ukraine, VDE
-
Length of connection cable150 cm
-
Type of plug: without plug
-
Unit width: 80,4 cm
-
Device height22,3 cm
-
Unit depth52 cm
-
Packed unit height43 cm
-
Depth packed product66 cm
-
Width packed product95 cm
-
Maximum niche height49 cm
-
Minimum niche height49 cm
-
Maximum niche width78 cm
-
Minimum niche width78 cm
-
Niche depth22,3 cm
-
Net weight: 28,7 kg
-
Gross weight: 33,5 kg
-
Energy consumption of the 2nd heating element per kg: 185.0 Wh/kg
-
Average annual energy consumption: 56.9 kWh/year
-
Energy efficiency index (2010/30/EU): 51.4 %
-
Air flow boosted (2010/30/EU): 636.0 m³/h
-
Max. Air flow: 532 m³/h
-
Minimum airflow: 359.0 m³/h
-
Liquid dynamic efficiency (2010/30/EU): 29.7
-
Sound power dB: 70 dB(a) re 1 pW
-
Grease filter efficiency (2010/30/EU): 94.0 %
-
Volume amplified (2010/30/EC)74 dB
-
Loudness at max. speed (2010/30/EC)70 dB
-
Loudness at min. speed (2010/30/EC)61 dB
-
Energy intelligent device, can optimize consumption behavior (2017/1369/EU)no
-
Wireless communication possibleyes, built into the unit
-
Network broadband technology: Not applicable
-
SIM card slot availableno
-
Remote upgrade capabilityno
-
Possibility of remote update for maintenanceyes
-
automatic program: No
-
dimensions of the 2nd cooking zone38 cm
-
dimensions of the 6th cooking zone38 cm
-
cover type: Without
-
Position of the cooking zone: front left
-
Operation control light: No
-
Position of 2nd cooking zone: center left
-
Position of 3rd cooking zone: rear left
-
Position of the 4th cooking zone: center rear
-
Position of the 5th cooking zone: rear right
-
Position of the 6th cooking zone: center right
-
Position of the 7th cooking zone: front right
-
Position of the 8th cooking zone: front center / central
-
Position of the 9th cooking zone: central
-
Main switchyes
-
Electronic clockyes
-
Total fan power: 170 W
-
2nd cooking zone power: 3.3 W
-
Power of the 6th cooking zone: 3.3 W
-
Residual heat indicator: Separate
-
Control: Stepless energy control
-
Safety devices: Key Lock, Child Lock, Power Management Function, Safety Timeout
-
type of 2nd cooking zoneinduction
-
type of 6th cooking zoneinduction
-
Mixing bowl diameter636 m³/h
-
Height of the mixing bowl: 627.0 m³/h
-
Max. Fan capacity - exhaust mode: 532 m³/h
-
Max. Fan power - recirculation: 497 m³/h
-
Odor filter: No
