- Interior with solid and precisely joined aluminum elements in Gaggenau Light Bronze
- pull-out shelves and drawers
- Warm white and glare-free LEd light
- 4 climate zones incl. 2 fresh food drawers close to 0 °c
- Height-adjustable shelves, extendable, made of safety glass, framed in solid aluminum profiles
- Interior with solid and precisely joined aluminum elements in Gaggenau Light Bronze
- pull-out shelves and drawers
- Warm white and glare-free LEd light
- 4 climate zones incl. 2 fresh food drawers close to 0 °c
- Height-adjustable shelves, extendable, made of safety glass, framed in solid aluminum profiles
- Damped door retraction system allows for smooth and controlled closing
- Telescopic full-extension runners with smooth-running function and damped retraction allow for smooth and controlled closing of the drawers
- Bottle shelves made of solid maple wood with magnetic connection
- Total capacity 223 liters
- Electronic temperature control with digital display.
- Sensor buttons.
- automatic defrost with defrost water evaporation.
- Damped door retraction system from 20° door opening angle, integrated in the door hinge.
- alarm in case of open door or malfunction.
- Vacation mode.
- Remote control and monitoring.
- Home network integration for digital services (Home Connect) wireless via WiFi.
- the use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.
- Fast cooling.
- Temperature adjustable from +3 °c to +8 °c.
- 2 height-adjustable shelves in safety glass, partially extendable.
- 1 shelf in satin white glass.

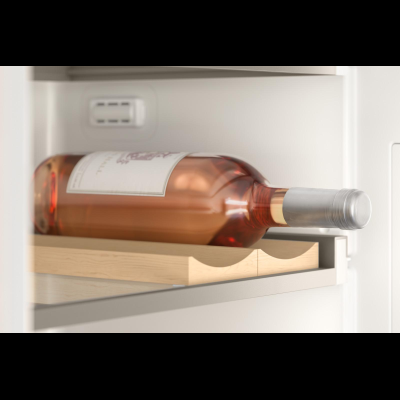

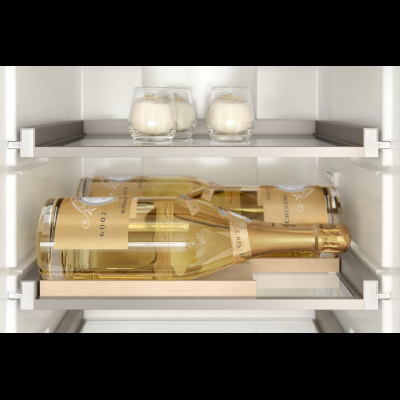

- 2 bottle shelves in solid maple wood with magnetic connection, oiled, expandable up to 5 shelves per tray.
- Using 5 bottle shelves, up to 9? bottles (0.75 l standard bottle shape) can be stored on one level.
- Bottle shelves also suitable for storing champagne and magnum bottles.

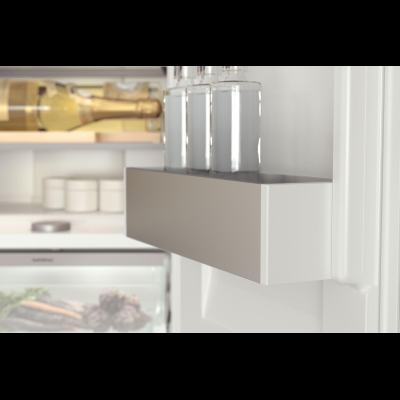

- 1 large aluminum door rack for bottles.
- 1 aluminum door rack.
- Warm white interior lighting (3500 k) with glare-free LEd lighting elements, integrated on the sides.
- Usable capacity 101 liters.
- Drawers with aluminum handle and drawer front with flat white color gradient.
- 1 fully extendable fresh cooling drawer close to 0 °c, illuminated.
- Humidity manually adjustable.
- Ideal for fruits and vegetables.
- 1 fully extendable fresh food drawer close to 0 °c, illuminated.
- Ideal for meat, fish and poultry.
- Useful capacity 55 liters.
- No-frost technology with fast freezing.
- Temperature adjustable from -14 °c to -24 °c.
- 4-star freezer compartment.
- Drawers with aluminum handle and drawer front with flat white color gradient.
- defrost aid.
- Freezing capacity 7 kg /24 hrs.
- Storage time in case of malfunction 8 hrs.
- 3 freezer drawers, 1 extra large.
- 2 safety glass shelves.
- Useful capacity 67 liters.
- Energy efficiency class d on a scale of efficiency classes from a to G.
- Energy consumption 201 kWh/year.
- Noise value 37 dB (a) re 1 pW.
- Flat hinge.
- Door hinge right, changeable.
- Door opening angle 115°, fixable to 90°.
- Max. permissible door front weight:
- Door top 19 kg. Door bottom 19 kg.
- Total connected load 0.090 kW.
- connection cable 2.3 m with plug.
Energy efficiency class: | A+++ D |
Product type: | Fridge / freezer combination |
Installation type: | Fully integrable |
Device width: | 60cm |
Controls: | Freezing super switch Warning functions freezer compartment Freezing malfunction warning signal Door open warning signal Temperature display for cooling Cooling super switch |
Item weight: | 76,00 kg |
Skala Energieeffizienzklasse: | A+++ bis D |
Energieeffizienzklasse: | D |
brand: | Gaggenau |
Produktdatenblatt: | https://media3.gaggenau.com/Documents/eudatasheet/de-DE/RB289300.pdf |
Energielabel: | https://media3.gaggenau.com/Documents/3000x3000/energylabel/de-DE/RB289300.jpg |
Modellbezeichnung: | RB289300 |
Marke laut ElektroG (EAR): | Gaggenau |
Geräteart laut ElektroG: | Großgeräte, die in privaten Haushalten genutzt werden können. |
WEEE-Reg.-Nr. DE: | 57986696 |
- Product series200 series
- Product categorybottom freezer
- Control systemelectronic
- Controlscontrols : Super switch freezing, Super switch cooling, Temperature indicator for cooling, Warning functions freezer section, Warning signal freezing malfunction, Warning signal door open
- Construction built-in
- Is this appliance a built-in appliance?yes
- type of installation: Fully integrable
- decorable: Not possible
- Basic color of the product: Not applicable
- connected load: 90 W
- fuse protection: 10
- Voltage: 220-240 V
- Frequency50 TPU00040
- Length connection cable230 cm
- Plug type: Schuko/Gardy.w.grounding
- Net capacity: 223 l
- Gross capacity refrigerator: 183 l
- Gross capacity freezer section: 84 l
- Unit height177,2 cm
- Appliance width55,8 cm
- Appliance depth54,5 cm
- Product depth with door open (90°)114 cm
- Door hinge: Changeable to the right
- Height adjustable feetno
- Height packed unit184 cm
- Width packed unit61 cm
- Depth packed product64 cm
- Minimum niche height177,5 cm
- Maximum niche height177,5 cm
- Minimum niche width56 cm
- Maximum niche width56 cm
- Niche depth55 cm
- Gross weight: 81,0 kg
- Product type: 2 doors
- type of defrosting technology (4-star compartment) (eu 2017/1369): automatic
- Recommended temperature (4-star compartment) (eu 2017/1369): -18 °c
- Compartment volume (4-star compartment) (eu 2017/1369): 67.0 l
- Total volume of the freezer compartments (eu 2017/1369): 67 l
- Sum of the volumes of the cold storage compartments (eu 2017/1369): 156 l
- Total volume of the product (eu 2017/1369): 223 l
- type of defrosting technology (cold storage compartment) (eu 2017/1369): automatic
- Volume of the compartment (cold storage compartment) (eu 2017/1369): 55.0 l
- average energy consumption in kilowatt hours per year (kWh/a) (eu 2017/1369): 201 kWh/a
- Energy efficiency index (eu 2017/1369): 80
- Quick freeze" function (eu 2017/1369): Yes
- Freezing capacity (four-star compartment) (eu 2017/1369): 7.0 kg/24h
- Compartment volume (fresh food storage compartment) (eu 2017/1369): 101.0 l
- type of defrosting technology (fresh food storage compartment) (eu 2017/1369): automatic
- type of light source (eu 2019/1805): LEd
- List of compartments: 4 star, Fresh food, Cold storage compartment
- Low noise refrigerator: No
- Maximum ambient temperature (eu 2017/1369): 43 °c
- Minimum ambient temperature (eu 2017/1369): 10 °c
- Airborne sound emissions (eu 2017/1369): 37 dB(a) re 1 pW
- Product excluded from the scope for "low noise appliance" and "wine storage cabinet" (eu 2017/1369): No
- QR code (eu 2017/1369): HTTPS://EPREL.EC.EUROPa.EU/QR/274344
- Wine storage cabinet only: No
- Control function ?Winter switching" for combi unit (eu 2017/1369): No
- Energy smart appliance, can optimize consumption behavior (2017/1369/EU): No
- wireless communication possible: Yes, built into the device
- Lighting technology used (light source 1) (eu 2019/1805): LEd
- Network broadband technology: Not applicable
- SIM card slot available: No
- Communication technology usedwiFi
- type of control interface: LaN
- Remote upgrade possibilityno
- Possibility of remote update for maintenance: Yes
- Camera present in deviceno
- Warning signal in case of malfunctionvisible and audible
- defrosting in the cooling sectionautomatic
- Material of shelvessafety glass
- freezer defrostingautomatic
- Temperature display refrigeratordigital
- Fast cooling functionyes
- Temperature display freezer compartmentdigital
- Fast freezing functionyes
- Freezer door open indicatorno
- Temperature adjustable freezeryes
- Included accessories: 2 x cold battery, 2 x egg tray, 1 x ice cube tray, 2 x bottle tray wood magnetic
- Defrost water drying: No
- Internal fan cooling section: No
- Adjustable temperatureyes
- Furniture door mounting: Fixed mounted
- Interior lightingyes
- type of interior lightinglEd light
- Motorized automatic ice makerno
- Bottle rackyes
- lockable doorno
- Water supply: Not applicable
- COMBINEd_NOMENCLaTURE_COdE: 84181080
