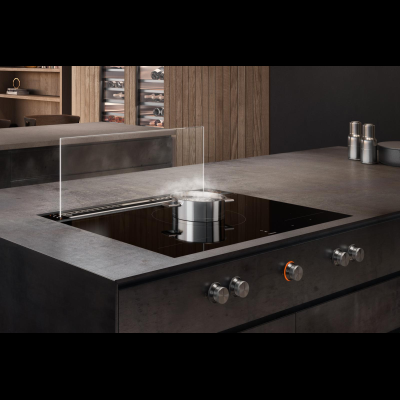

Gaggenau al200180, 200 series, table fan, 80 cm, clear glass

extendable table ventilation, can be completely retracted into the worktop when not in use
Perfect combination of cooking and ventilation with frameless 80 cm wide induction cooktops for flush installation in a common countertop cutout
Transparent ventilation panel for discreet integration into the kitchen environment
ambient lighting on the glass edges
Guided air technology enables high vapor capture across the entire cooktop

further details

extendable table ventilation, can be completely retracted into the worktop when not in use
Perfect combination of cooking and ventilation with frameless 80 cm wide induction cooktops for flush installation in a common worktop cutout
Transparent ventilation panel for discreet integration into the kitchen environment
ambient lighting on the glass edges
Guided air technology enables high vapor capture across the entire cooktop

Performance

Power and noise, level 3/Intensive:
Air performance according to en 61591.
Sound power level according to en 60704-3.
Odor reduction with recirculation air according to en 61591.
exhaust air:
501 / 775 m³/h.
62 / 70 dB (a) re 1 pW.
Recirculation (with standard activated carbon filter):
447 / 562 m³/h.
65 / 70 dB (a) re 1 pW.
Odor reduction: > 90%.

equipment

White ambient lighting on the edges of the glass. Color can be adjusted via the Home Connect app.
Cooktop-based ventilation control.
automatic function with sensor-controlled overrun.
3 electronically controlled power levels and 1 intensive level.
Grease filter saturation indicator.
activated charcoal filter saturation indicator.
Included are 2 large metal grease filters, easy to remove and dishwasher safe.
Overflow capacity 170 ml in the grease filter. 600 ml additional capacity in the blower module.
activated charcoal filter for easy removal from the top in recirculation mode.
Gaggenau black anodized aluminum frame.
1 control panel for setting the power levels and 1 control panel for Guided air technology.
Blower technology with high efficiency brushless DC motor (BLDC).
Flexible installation of blower modules at the front (for compact wall solution), rear (for island solution without loss of drawer depth) or at a distance from the unit.
Home network integration for digital services (Home Connect) wirelessly via WiFi.
The use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.

Consumption data

Energy efficiency class a on a scale of efficiency classes from a+++ to D.
Average energy consumption 36.9 kWh/year.
Fan efficiency class a.
Lighting efficiency class -.
Grease filter efficiency class B.
Noise min. 39 dB / max. 62 dB normal level.

Planning information

Can be combined with frameless induction hobs of the 400 series (cx 482) or the 200 series (ci 282 / ci 283) in a common worktop cutout for flush installation.
When installing in a common countertop cutout, the Va 200 080 installation accessory must be used between the appliances. This contains a connecting strip and furniture braces to ensure the stability of the furniture.
Can be combined with 400 series induction hobs (cx 482 / vi 482) or 200 series induction hobs (ci 282 / ci 283) in two separate worktop cut-outs for surface installation.
For surface mounting, the aa 200 900 accessory is required.

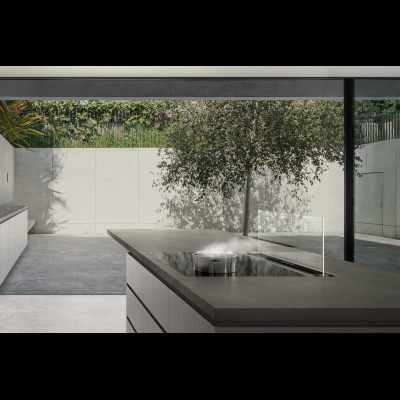

The table ventilation can be installed either in the furniture or between two pieces of furniture (e.g. installation in an island solution for a depth over 100 cm).
Furniture width 90 cm, 100 cm or 120 cm.
To ensure optimal performance, do not install wall units above the table ventilation.
The following distances must be observed:
- 65 cm from the table ventilation to open shelves.
- 50 cm to the left and right of the table ventilation to the wall or to an adjacent tall cabinet.
- 5 cm from the frame of the table ventilation to the wall.
- 2 cm from the Guided air intake area to a furniture wall.
The installation is suitable in countertops made of stone, synthetic material or solid wood. Heat resistance and waterproof sealing of the cut edges must be considered. For other materials, consult the countertop manufacturer for use.
Recommended worktop thickness for flush installation in a common worktop cutout: 16 - 45 mm.
The load-bearing capacity and stability, especially with thin worktops, must be ensured by suitable substructures. Take into account the weight of the unit including additional load.
Whatever installation situation, the fan unit should always be accessible.
For staggered installation of the fan units, the aa 200 910 accessory set is required (with interchangeable covers for closing the air outlets). Maximum distance between the table ventilation and the blower module 3 m.
In exhaust air mode, a backflow damper with a maximum opening pressure of 65 Pa should be installed.
In exhaust air mode, always ensure sufficient draught if the unit is used simultaneously with a room-air dependent fireplace.
The pressure-stable blower allows piping up to 8m with 3x90° bends while maintaining adequate performance.
For optimal performance in recirculation mode, a discharge area of min. 400 cm² is recommended.
A recirculation module is required for recirculation operation.

connection data

Total connected load 300 W.
connection cable 1.3 m with plug.
Power standby/display off 0.4 W.
Please follow the instructions in the user manual if you want to switch off the WiFi function.

Energy efficiency class:	A
Colour:	Black#1
Product type:	Extractor bonnet
Installation type:	Built-in Integrable
device width:	80 cm
controls:	TouchControl
Item weight:	35,00 kg

Product series: 200 series
Color device: Black
Basic product colorblack
Housing color: Black
Specify case material: Glass
Type of construction: Downdraft/table fan
Control: Electronic
Designbuilt-in
type of installationbuilt-in
ControlstouchControl
Decorative: Not applicable
Fan position: Motor in housing
type of air duct: Convertible
connected load: 300 W
fuse protection: 10
Voltage: 220-240 V
Frequency: 50; 60 TPU00040
approval certificates: , ce, EaC-Eurasian, G-Mark, VDE
Length of connection cable130 cm
Plug type: Schuko/Gardy.w.grounding
Appliance width79,2 cm
Device depth14 cm
Packed unit height61 cm
Width of packed unit114 cm
Depth packed product87 cm
Minimum niche width78,1 cm
Maximum niche width78,1 cm
Niche depth12,3 cm
Net weight: 39,9 kg
Gross weight: 46,9 kg
Height chimney exhaust max.: 95,9 cm
Height chimney exhaust air min.: 70,9 cm
Height chimney recirculation max.95,9 cm
Height chimney recirculation min.70,9 cm
application of the EU Energy Consumption Directiveyes
Average annual energy consumption: 36.9 kWh/year
Liquid dynamic efficiency (2010/30/EU): 29.6
Grease filter efficiency (2010/30/EU): 90.7 %
Max. Air volume: 501 m³/h
Minimum air flow: 223.4 m³/h
Air flow amplified (2010/30/EU): 774.9 m³/h
Loudness at max. speed (2010/30/EC)62 dB
Loudness at min. speed (2010/30/EC)39 dB
Volume amplified (2010/30/EC)70 dB
Energy consumption in standby mode (2010/30/EC): 0.41 W
Sound power dB: 62 dB(a) re 1 pW
Noise level with fast cooking position (booster)70 dB(a) re 1 pW
Energy smart appliance, can optimize consumption behavior (2017/1369/EU): No
Wireless communication possible: Yes, built in the device
Network broadband technology: Not applicable
SIM card slot availableno
Communication technology usedwiFi
type of interface for control: LaN
Remote upgrade possibilityno
Possibility of remote update for maintenance: Yes
Possibility of voice controlyes, with optional accessories
Manual controlstouchControl
Remote Controlno
Total blower power: 300 W
Max. Fan power - exhaust mode: 501 m³/h
Mixing bowl diameter: 775 m³/h
Max. Fan capacity - recirculation mode: 416 m³/h
Height of the mixing bowl: 525 m³/h
Grease filter material: stainless steel washable
Diameter of exhaust15 cm
Backflow flapno
Odor filterno
number of speed settings: 3-stage + 2 Intensive
